Supported KQL features in Azure Monitor transformations

Transformations in Azure Monitor allow you to run a KQL query against incoming Azure Monitor data to filter or modify incoming data before it's stored in a Log Analytics workspace. This article details KQL considerations and supported features in transformation queries in addition to special operators that are only available in transformations.

Since transformations are applied to each record individually, they can't use any KQL operators that act on multiple records. Only operators that take a single row as input and return no more than one row are supported. For example, summarize isn't supported since it summarizes multiple records.

Only the operators listed in this article are supported in transformations.

Note

For multi-stage transformations (preview), the KQL features described in this article apply to the transform.KQL processor and to the transformKql property in data flows. Other processor types such as filter.Basic, parse.JsonPath, and aggregate.Basic use declarative JSON configuration rather than KQL. See DCR structure - Processor types for details.

Special considerations

Parse operator

The parse operator in a transformation is limited to 10 columns per statement for performance reasons. If your transformation requires parsing more than 10 columns, split it into multiple statements as described in Break up large parse commands.

Handle dynamic data

Consider the following input with dynamic data:

{
    "TimeGenerated" : "2021-11-07T09:13:06.570354Z",
    "Message": "Houston, we have a problem",
    "AdditionalContext": {
        "Level": 2,
        "DeviceID": "apollo13"
    }
}

To access the properties in AdditionalContext, define it as dynamic-type column in the input stream:

"columns": [
    {
        "name": "TimeGenerated",
        "type": "datetime"
    },
    {
        "name": "Message",
        "type": "string"
    },
    {
        "name": "AdditionalContext",
        "type": "dynamic"
    }
]

The content of the AdditionalContext column can now be parsed and used in the KQL transformation:

source
| extend parsedAdditionalContext = parse_json(AdditionalContext)
| extend Level = toint (parsedAdditionalContext.Level)
| extend DeviceId = tostring(parsedAdditionalContext.DeviceID)

Dynamic literals

Use the parse_json function to handle dynamic literals.

For example, the following queries provide the same functionality:

print d=dynamic({"a":123, "b":"hello", "c":[1,2,3], "d":{}})

print d=parse_json('{"a":123, "b":"hello", "c":[1,2,3], "d":{}}')

Special functions

The following functions are only available in transformations. They can't be used in other log queries.

parse_cef_dictionary

The parse_cef_dictionary function parses the Extension property of a CEF message into a dynamic key/value object. Semicolon is a reserved character that should be replaced before passing the raw message into the method, as shown in the example.

| extend cefMessage=iff(cefMessage contains_cs ";", replace(";", " ", cefMessage), cefMessage)
| extend parsedCefDictionaryMessage =parse_cef_dictionary(cefMessage)
| extend parsecefDictionaryExtension = parsedCefDictionaryMessage["Extension"]
| project TimeGenerated, cefMessage, parsecefDictionaryExtension

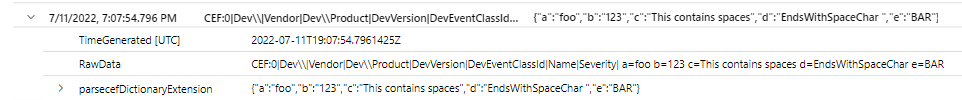

Table showing parsed CEF dictionary output with TimeGenerated, cefMessage, and parsed extension columns.

geo_location

The geo_location function returns approximate geographical ___location for an IP address (IPv4 and IPv6 are supported), including the following attributes:

  • Country
  • Region
  • State
  • City
  • Latitude
  • Longitude
| extend GeoLocation = geo_location("1.0.0.5")

Table showing geo_location output with country, region, state, city, latitude, and longitude columns.

Important

This function calls an external IP geolocation service, which might add data ingestion latency. Use it sparingly—no more than a few times per transformation.

Supported statements

Let statement

The right-hand side of let can be a scalar expression, a tabular expression, or a user-defined function. Only user-defined functions with scalar arguments are supported.

Tabular expression statements

The only supported data sources for the KQL statement in a transformation are:

  • source, which represents the source data. For example:

    source
| where ActivityId == "383112e4-a7a8-4b94-a701-4266dfc18e41"
| project PreciseTimeStamp, Message

  • print operator, which always produces a single row. For example:

    print x = 2 + 2, y = 5 | extend z = exp2(x) + exp2(y)

Supported tabular operators

Supported scalar operators

  • All Numerical operators are supported.

  • All Datetime and Timespan arithmetic operators are supported.

  • The following String operators are supported.

    • ==
    • !=
    • =~
    • !~
    • contains
    • !contains
    • contains_cs
    • !contains_cs
    • has
    • !has
    • has_cs
    • !has_cs
    • startswith
    • !startswith
    • startswith_cs
    • !startswith_cs
    • endswith
    • !endswith
    • endswith_cs
    • !endswith_cs
    • matches regex
    • in
    • !in

  • The following Bitwise operators are supported.

    • binary_and()
    • binary_or()
    • binary_xor()
    • binary_not()
    • binary_shift_left()
    • binary_shift_right()

Scalar functions

Identifier quoting

Use Identifier quoting as required.
